DOSING TECHNOLOGY
Solutions for granulate, fibers, regrinds, powders and liquids
All dosing devices can be operated either in volumetric or gravimetric mode: for some applications it is sufficient to simply operate the device on a frequency converter. This makes it possible to achieve sufficiently high levels of accuracy, depending on product properties such as compressibility and flow behavior. If more precision is required, the dosing device is placed on a platform scale and connected to our gravimetric controller. Compliance with the recipes is constantly monitored and changes are responded to immediately.
GRANULATE

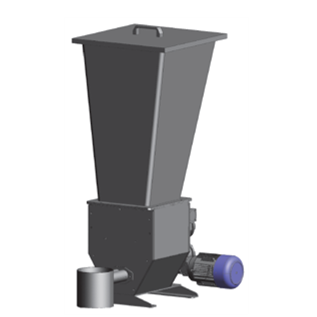

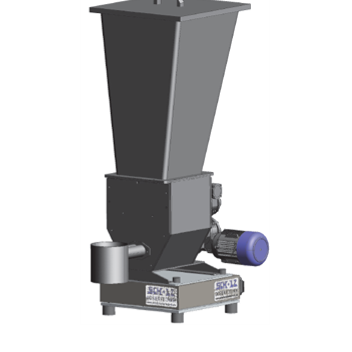

Our basic line with the LOGO, MONO+, SOLO and GOLO models is ideal for well-flowing granulate. There is no unnecessary technolody added - this ensures an unbeatable price! Furthermore, equipped with an agitator, they are tried-and-tested solutions for regrind, foil scraps and recycled materials of all kinds.
LOGO
Single screw
12-60mm
1 until 500 kg/h
- Basis line
- Inexpensive
ECONO

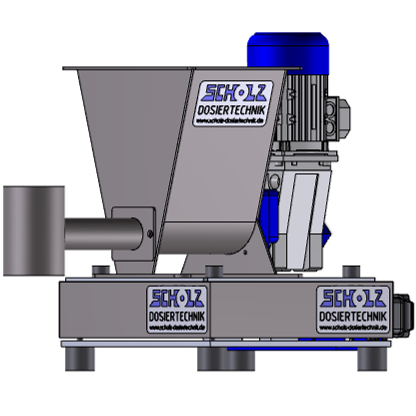

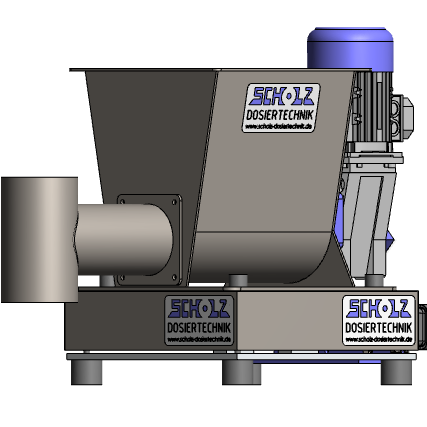

Loss-in-weight feeder
LOGO + BASIC platform scale
MONO+
Single screw
12-60mm
until 1.000 kg/h
- Powerful engine
- Extras available
MODUS
Loss-in-weight feeder
MONO + BASIC platform scale
SOLO
Single screw
40-100mm
until 5.000 kg/h
- Specialist for recycling
RATIO
Loss-in-weight feeder
SOLO + BASIC platform scale
GOLO
Single screw
40-100mm
until 10.000 kg/h
- For lightweight fabrics
GOLIA
Loss-in-weight feeder
GOLO + BASIC platform scale
POWDERS

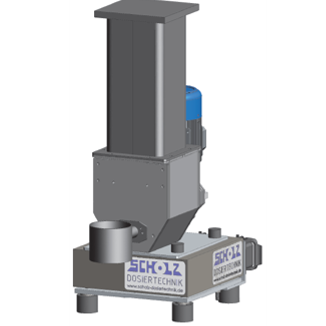

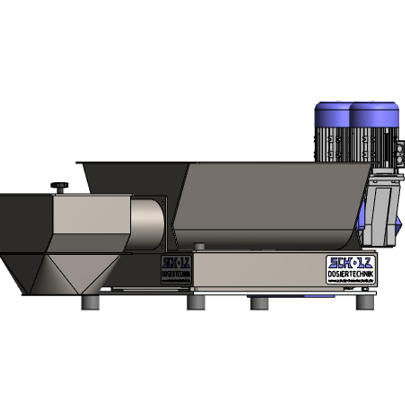

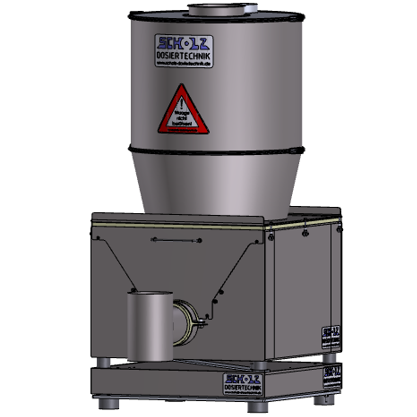

Our FLEX feeders are equipped with two motors. This allows you to regulate the paddling frequency of the flow aid separately if necessary. This model series is the newest generation of FLEX feeders on the market and impresses with its extremely robust mechanics and paddles that can be adapted to various requirements. We are happy to forego maintenance-prone constructions such as eccentrics and bicycle chains that you find with our competitors! Another practical detail: Our PU trough is easily removable and has a cast metal frame which greatly simplifies handlung and reinserting the through after cleaning.
FLEX50
Single screw
13-40mm
1 until 100 kg/h
- For pigments, flame retardant
VARIO
Loss-in-weight feeder
FLEX50 + BASIC platform scale
FLEX80
Single screw
31-75mm
until 1.000 kg/h
- For mineral fillers
SOLID
Loss-in-weight feeder
FLEX80 + BASIC platform scale
FLEX130
Single screw
100-125mm
until 10.000 kg/h
- Large product room/ funnel
TITAN
Loss-in-weight feeder
FLEX130 + BASIC platform scale
ADDITIVES

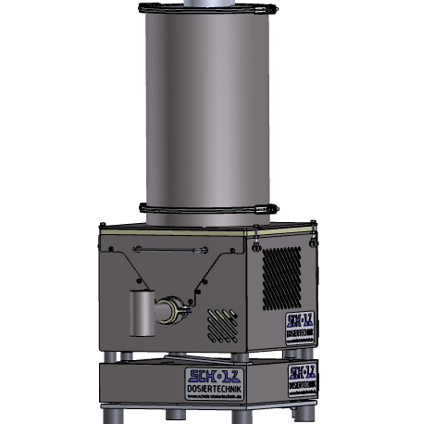

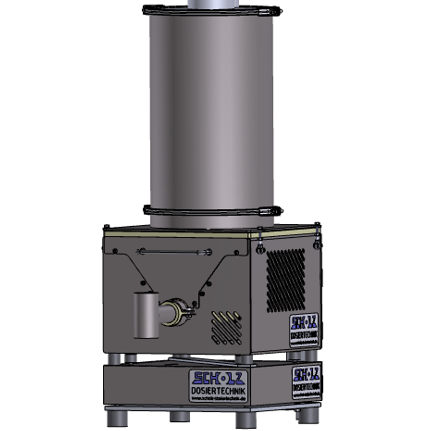

Our TWIN feeders are the specialists for sticky, dull and very light materials.The synchronous pair of screws prevents build-up on the screws during operation and an agitator running directly above ensures that the screws are filled evenly - the essential prerequisite for precise dosing. In addition, our TWIN series is also very suitable for small quantities of a few grams per hour due to the even product discharge.
TWIN20
Twin screw
with agitator
0,1 until 100 liter/h
- Small and light
- Easy to clean
DUPLO20
Loss-in-weight feeder
TWIN20 + BASIC platform scale
TWIN40
Twin screw
with agitator
until 1.500 Liter/h
- Large product room/ funnel
DUPLO40
Loss-in-weight feeder
TWIN40 + BASIC platform scale
FLUIDS

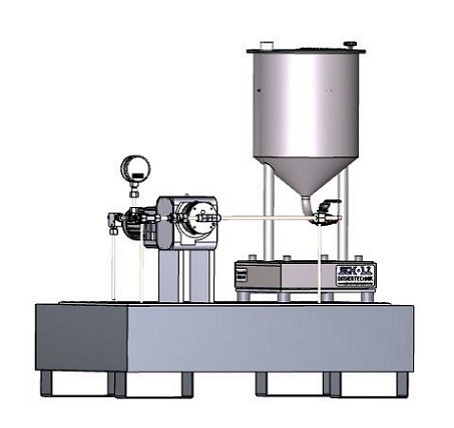

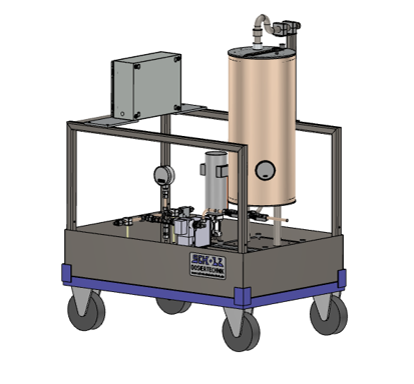

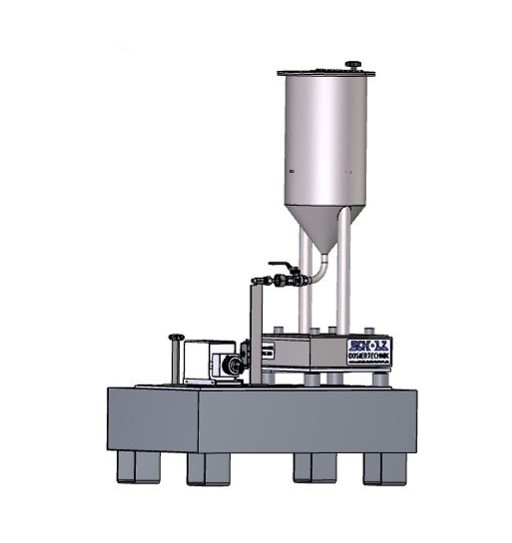

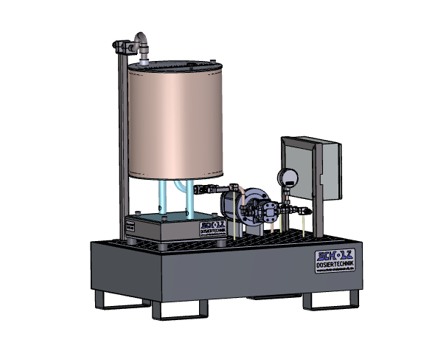

Our LIQUI dosing stations are built individually according to your requirements. We select the appropriate pump technology based on the physical properties of the dosed substance (primarily viscosity and bulk density) as well as the process back pressure (bar): besides gear and diaphragm pumps, we also offer hose or piston pumps. We build the dosing station around this pump: mobile or stationary, including a refill pump and pressure hoses if desired. If necessary, we can also design the entire station in an actively heated version.
WEIGHING TECHNOLOGY

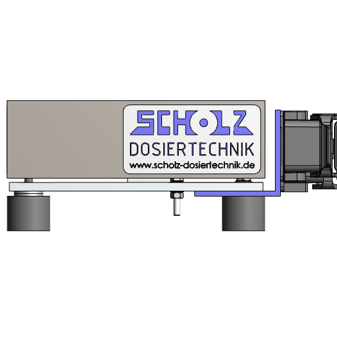

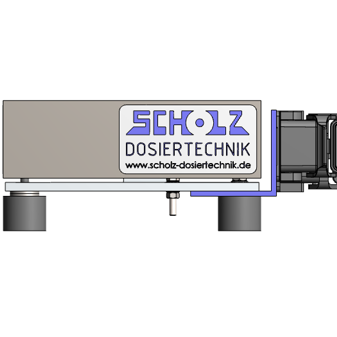

In order to switch from a volumetric to a gravimetric dosing device, the feeder is linked to a platform scale. All of our platform scales have an identical height. We offer two different measurement techniques, the PESA string technique and the strain gauge technique (DMS). Depending on your capacity requirements, the feeder will be linked to a SCHOLZ BASIC300, SCHOLZ BASIC400, SCHOLZ BASIC600 or SCHOLZ BASIC800.
PESA-STRING-TECHNOLOGY: The tension of a vibrating string is influenced by the load weight on the platform scale, which changes the vibration frequency. The weight is detemined from the change in the oscillation frequency. The technology is used for gravemtric feeders with SCHOLZ BASIC300, SCHOLZ BASIC400 und SCHOLZ BASIC600.
DMS-TECHNOLOGY: The measuring principle is based on the change in electrical resistance when suitable materials are stretched and compressed. The load on the platfrom scale thus causes a voltage change by which the weight is determined. The technology is used for batch as well as gravimetric applications with SCHOLZ BASIC700.
BASIC300
BASIC400
BASIC600
BASIC700
GRAVIMETRIC EQUIPMENT

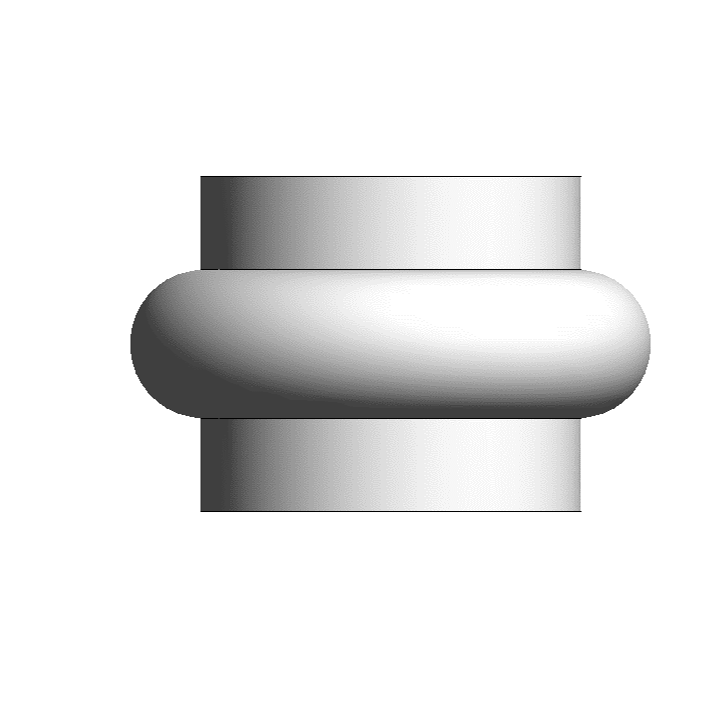

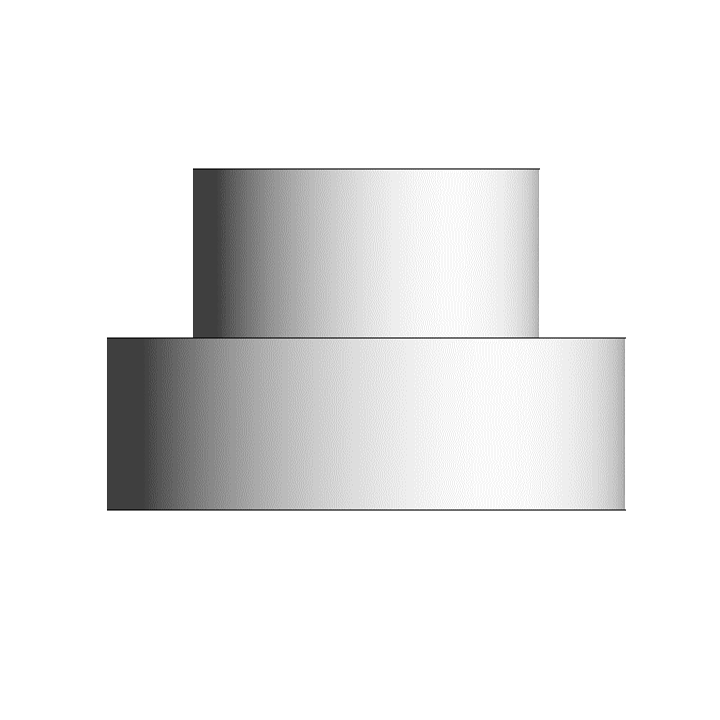

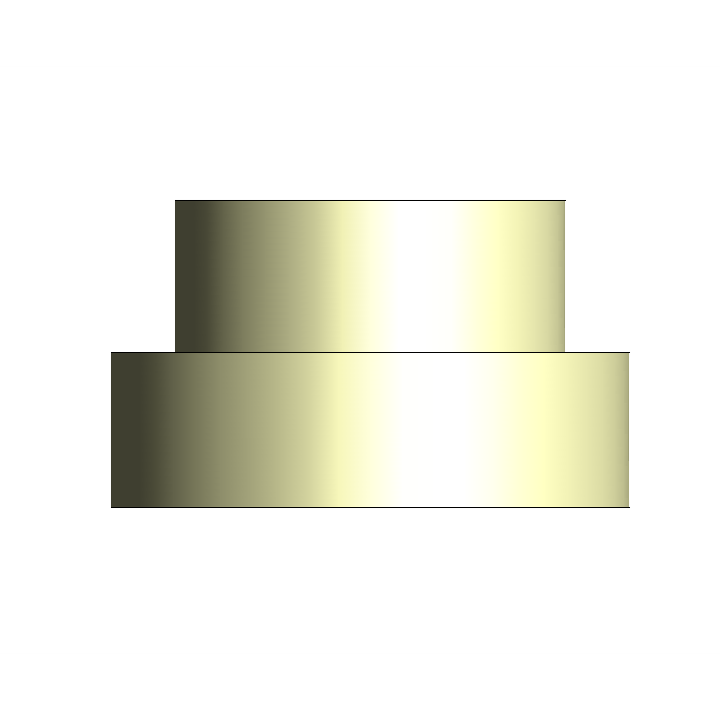

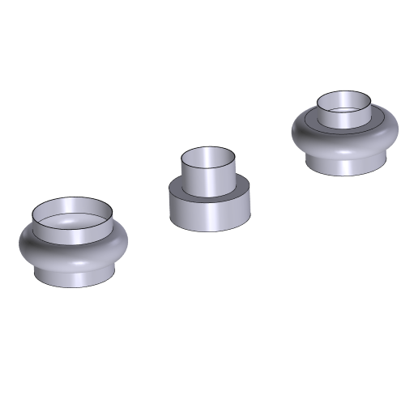

We offer accessories for gravimetric dosing devices. The folding and step bellows as well as the pipe caps, filter bags and hose clamps are particularly easy to maintain as they can be easily replaced.
OPTIONAL CERTIFICATIONS
Explosion-proof version
ATEX certified
Food-safe version
FDA - EC 19535/2004 certified
